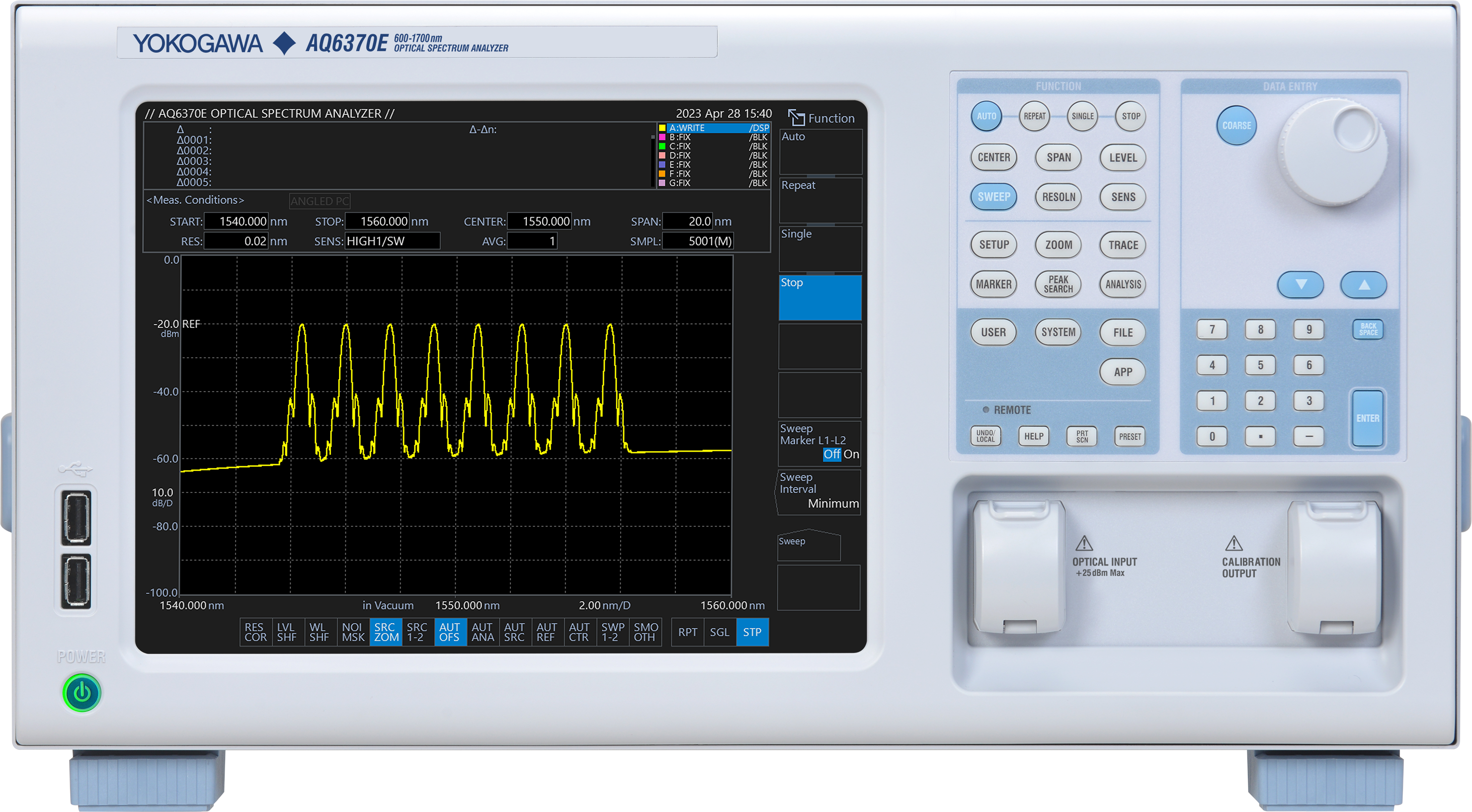

Yokogawa AQ6370E optical spectrum analyzer repair

The Yokogawa AQ6370E is the current top of the AQ6370 series. 600 to 1700nm wavelength range, 0.02nm minimum resolution bandwidth, 78dB typical close-in dynamic range, 0.2 second sweep over a 100nm span, 10.4-inch capacitive touchscreen. It handles DWDM validation, OSNR measurement, DFB-LD characterization, transceiver production testing, and photonics R&D in one box. It is a precision monochromator instrument, and like every precision optical instrument, physical wear catches up with it over time regardless of how new the unit is. Yokogawa factory service exists for the AQ6370E. Lead times run in weeks. If the instrument is a production-line tool or a lab workhorse you cannot be without, weeks is the wrong answer. We complete most repairs in 1 to 3 business days at component level, not module swap. What Breaks on the AQ6370E FC/APC input connector wear is the most common fault we see on this instrument. The free-space input is built around an FC/APC interface, and repeated fiber mating cycles wear the alignment sleeve. Symptoms are erratic power readings, elevated insertion loss on known-good fiber, or total loss of optical coupling. We rebuild or replace the connector interface and verify coupling performance after the repair before the unit ships. Touchscreen faults show up on units in heavy continuous use. The 10.4-inch capacitive panel is solid, but edge registration degrades on high-cycle units and the panel eventually stops responding reliably in certain zones. LAN port failure after voltage transients is a regular occurrence in rack and bench environments. Since Ethernet is the primary remote control path for any AQ6370E in an automated test build, a dead LAN port pulls an otherwise working OSA out of service for the entire system. Sweep motor degradation comes in as slow sweep initialization, startup errors, or timeout faults during the internal optical alignment routine. The monochromator drive has a service life, and units running continuous sweep loops in production get there faster than lab instruments. Optical path contamination from dirty fiber connections produces stray light artifacts, an elevated noise floor, and wavelength calibration drift. It is one of the most common causes of dynamic range problems on units sent in under the assumption that the instrument needs a full calibration. Clean the path first, then calibrate. Cooling fan failure on production-use units leads to thermal shutdowns. The protection trips, the unit shuts down, restarts, trips again. Repeated thermal cycling ages the internal electronics faster than normal operation would. How We Work Every AQ6370E that comes in gets a full diagnostic before any repair starts. DFB reference sources at 1310 and 1550nm, sweep speed verification against spec, dynamic range measurement, and communication port testing across GPIB, LAN, and USB. That baseline is what lets us give you an accurate repair quote rather than a guess. Repair is at the component level. A worn connector gets rebuilt, not swapped out at the assembly level with a marked-up part. A failed motor drive circuit gets the bad component replaced. NIST-traceable calibration with a certificate ships with every completed unit. You also get a test report showing pre-repair and post-repair measurements so you have a full service record.
