Used Embedded Test Systems for Sale

An embedded test system is a purpose-built, self-contained measurement or control platform designed to run autonomously without a desktop PC. Unlike bench instruments that require a PC for automation, embedded test systems combine a real-time or FPGA processor with measurement I/O in a single ruggedized package. NI CompactRIO, NI PXI embedded controllers, and VXI embedded controllers are the most common types. They are deployed in production test racks, aerospace and defense test benches, HIL (hardware-in-the-loop) simulators, and industrial machine monitoring — anywhere that continuous unattended operation, deterministic timing, or rugged environmental ratings are required.

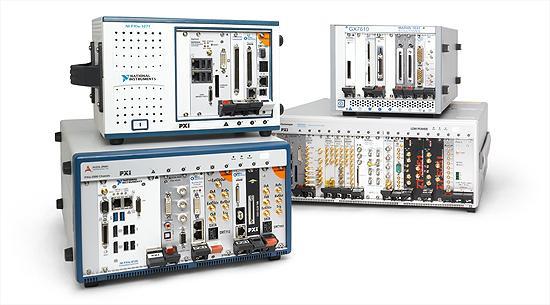

PXI (PCI eXtensions for Instrumentation) is a modular bus standard for high-speed instrument modules — signal generators, digitizers, switching matrices, DMMs — in a chassis controlled by an embedded or desktop controller. It is optimized for synchronous, high-throughput instrument-level measurements. CompactRIO is a stand-alone embedded controller combining a real-time processor and user-programmable FPGA with rugged C-series I/O modules for analog/digital I/O, temperature, and motion. CompactRIO targets field-deployed data acquisition and control where ruggedness and deterministic execution matter more than raw instrument bandwidth. PXI is preferred for automated test equipment (ATE) benches; CompactRIO for machine monitoring and field test.

The NI cRIO-9073, 9074, 9076, and 9082 are the most traded used CompactRIO controllers. The cRIO-9073 and 9074 are 4-slot chassis with Spartan-6 FPGA — adequate for most DAQ and control applications. The cRIO-9082 is an 8-slot unit with a dual-core 1.33 GHz processor and Virtex-5 FPGA, the standard in higher-channel-count test benches. All require NI-RIO driver and LabVIEW Real-Time/FPGA licenses — confirm the target software versions are still supported before purchasing, as NI has end-of-lifed older FPGA bitfile compilation toolchains.

Verify the PXI chassis backplane health by checking that all slot trigger lines are active (use NI Measurement & Automation Explorer or the chassis diagnostics utility). PXI backplane faults cause intermittent synchronization failures that are hard to diagnose once the system is assembled. For embedded controllers (NI PXIe-8840, PXIe-8861), verify the BIOS is up to date and the unit boots to the OS without memory errors. Check the rear cooling fans — PXI chassis fans are the most common wear item. Confirm whether LabVIEW RT and driver licenses are transferable; some OEM licenses are node-locked and not transferable.

No — a VXI embedded controller (Hewlett-Packard E1406A, Keysight E8491B, National Instruments VXI-MXI series) is a slot-0 resource manager card that must be installed in a VXI C-size or D-size mainframe. It cannot operate standalone. The controller provides the GPIB or MXI/LAN gateway between the host PC or test system and the VXI instrument modules. If you are adding VXI control capability to an existing mainframe, ensure the controller's trigger bus and CLK10 synchronization are compatible with the instrument modules already installed — legacy HP E1406A controllers use a different trigger protocol than NI MXI-3 and MXI-4 controllers.

NI C-series modules are the I/O bricks that plug into CompactRIO and CompactDAQ chassis. Common analog input modules include the NI 9205 (32-channel ±10 V, 250 kS/s), NI 9215 (4-channel ±10 V simultaneous, 100 kS/s), and NI 9229 (4-channel ±60 V, for higher-voltage measurements). Thermocouple modules: NI 9213 (16-channel, 75 S/s). Digital I/O: NI 9401 (8-channel 5 V TTL bidirectional). C-series modules are hot-swappable and backward compatible across cRIO-9073/9074/9076/9082/9053/9058 chassis. Verify that the LabVIEW DAQmx or NI-RIO driver version on your controller supports the module you are adding — newer modules sometimes require driver updates.
