Used Optical Transceiver Testers for Sale

An optical transceiver tester verifies the electrical and optical performance of pluggable transceivers (SFP, SFP+, XFP, QSFP, QSFP28, QSFP-DD). Key measurements include transmit power (Tx), receiver sensitivity (Rx), operating wavelength, extinction ratio, eye diagram mask compliance, and digital diagnostic monitoring (DDM/DOM) data such as temperature, voltage, and bias current.

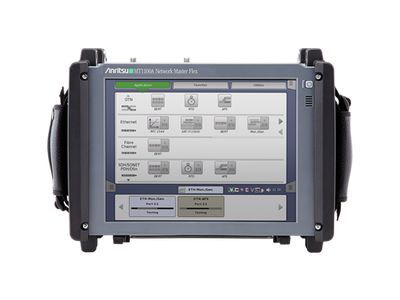

It depends on the tester. SFP/SFP+ testers handle 1G and 10G modules in the small form-factor pluggable cage. XFP testers handle 10G in the larger X2/XFP cage. QSFP28 testers handle 100G quad small-form-factor modules. Most modern platforms (EXFO FTB-1 Pro, Spirent, Anritsu MT1000A) accept modules via interchangeable interface cards. Confirm the specific module socket before ordering.

Digital Diagnostic Monitoring (DDM), also called Digital Optical Monitoring (DOM), is a standardized interface (SFF-8472 for SFP, SFF-8636 for QSFP) that exposes real-time transceiver parameters: Tx power, Rx power, laser bias current, supply voltage, and temperature via I2C. A transceiver tester reads these registers and compares them against MSA alarm and warning thresholds to flag failing or degraded modules.

Optical transceivers (LX, SR, LR, ER, ZR variants) are tested optically — the tester measures Tx power into a reference fiber and Rx sensitivity from a calibrated source. Direct Attach Cables (DAC) and Active Optical Cables (AOC) are tested differently — DACs electrically, AOCs optically at the cable ends. Not all testers handle all types; check the instrument specification for the cable/transceiver types it supports.

A transceiver tester (sometimes called a transceiver analyzer or SFP tester) measures the optical and electrical parameters of the module itself — Tx power, Rx sensitivity, wavelength, eye diagram. A protocol tester (Spirent, Ixia, VIAVI) generates and analyzes traffic at rates from 1G to 400G, measures frame loss, latency, and jitter. Many high-end platforms do both, but they serve different purposes in a test lab.

Request calibration records or a post-purchase calibration. The optical power reference accuracy in a transceiver tester is what determines Tx and Rx measurement accuracy — typically ±0.5 dB or better. Calibration drift in the optical power reference is the main accuracy concern. Eye diagram testers also need their timing reference (sampling oscilloscope or BER tester) verified. We calibrate transceiver testers before sale on request.

An optical power meter measures power only. If you need to verify that a 10GBase-LR transceiver meets its Tx power spec (−8.2 to +0.5 dBm per IEEE 802.3), a calibrated optical power meter suffices. If you need to read DDM registers, measure extinction ratio, check eye diagram mask compliance, or validate RX sensitivity, you need a transceiver tester. Most production and incoming inspection labs need both.

Aumictech Labs repairs and calibrates optical transceiver testers at our Pleasant Grove, UT facility. We accept instruments from anywhere in the United States. Free evaluation before any work, flat-rate pricing, NIST-traceable calibration certificates with measured data. Common repairs include optical power reference recalibration, cage socket replacement, and display/interface board faults.
