Racal 6062A 4-Channel Analog Input / 4-Channel Analog Output Module
The Astronics/EADS/Racal 6062A is a versatile module providing 4 analog input channels and 4 analog output channels, suitable for a variety of data acquisition and control applications.
- Model
- Racal 6062A
- Calibration
- NIST-traceable
- Price
- $2,200
- Status
- In stock
- RFQ ref
- 6062A
This unit

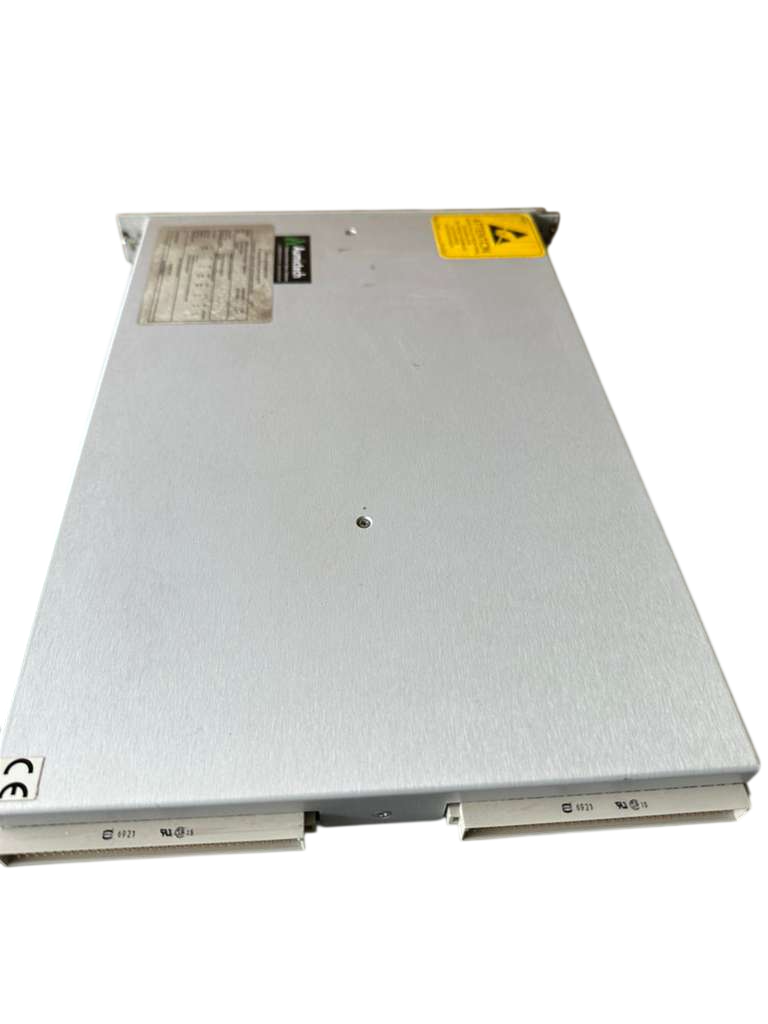

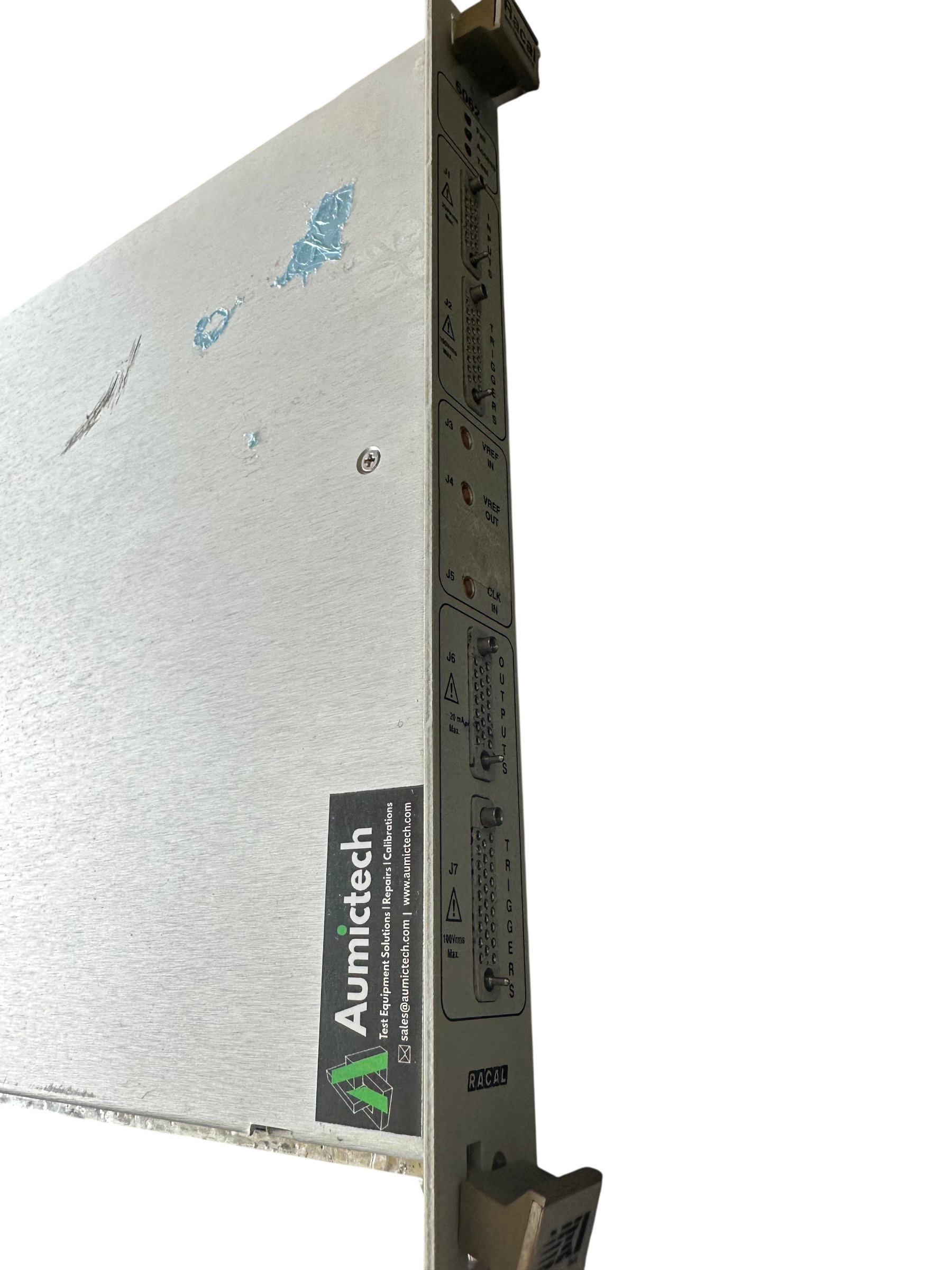

Tested Unit.

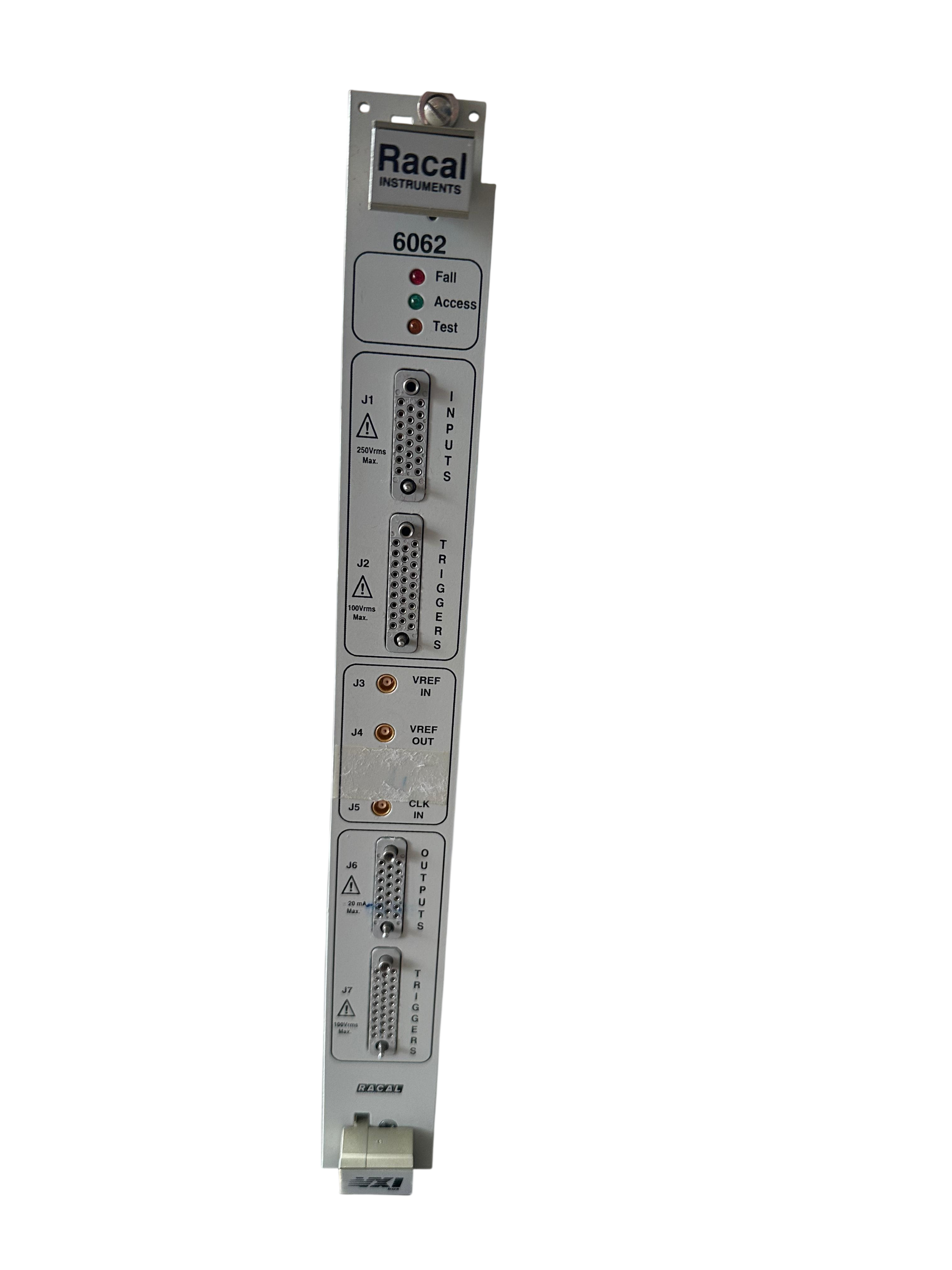

The Astronics/EADS/Racal 6062A is a VXI plug-and-play module combining 4-channel analog input and 4-channel analog output in a single card. It integrates digitizer and waveform generator functionality for data acquisition and real-time signal generation in test systems. The module supports flexible memory configurations up to 576 k-points, independent or synchronized triggering across channel groups, and dual control modes
SCPI messaging or pseudo-register programming for optimized throughput.
Technical Specifications Analog Input (4 channels)
16-bit resolution; 15-bit monotonicity
Input range: ±10 V; maximum common mode: ±10 V
Integral non-linearity: ±0.005% FSR; differential non-linearity: ±0.005% FSR
Accuracy (23°C ±2°C): ±(0.01% FSR ±1 mV)
Temperature coefficient: ±(0.002% FSR +0.1 mV/°C)
Input impedance: 10 MΩ // 100 pF
Overvoltage protection: 250 VDC or rms (50/60 Hz)
Small signal bandwidth: >200 kHz
Sample rate: 1 kS/s to 100 kS/s
DC CMRR: 80 dB; AC CMRR (50/60 Hz): 70 dB
Input modes: differential or single-ended Analog Output (4 channels)
16-bit resolution; 14-bit monotonicity
Output range: ±10 V
Integral non-linearity: ±0.006% FSR; differential non-linearity: ±0.006% FSR
Accuracy (23°C ±2°C): ±(0.01% FSR +1 mV)
Temperature coefficient: ±(0.002% FSR +0.1 mV)/°C
Settling time: 10 µs to 0.1%, 50 µs to 0.01%
Small signal bandwidth: >200 kHz; slew rate: >5 V/µs
Ripple voltage: 2 mVrms, 5 mVpk-pk
Output resistance: <2 Ω (2-wire mode); maximum output current: 20 mA/channel
Output modes: 2-wire or 4-wire
Key Features
Built-in waveforms: sine, triangle, sawtooth, ramp, square
Sine wave frequency: 100 mHz to 50 kHz; square wave: up to 25 kHz
User-defined waveforms: two custom waveforms, each as sum of 10 sine/cosine terms or Fourier coefficients
Memory: 64 k-points/channel standard; 576 k-points (single channel) or 128 k-points each (four channels) with extension
Triggering modes: immediate, continuous, burst (1 k to 64 k waveforms)
Independent trigger outputs for inter-channel synchronization
Multi-timer design for independent channel timing control
Typical Applications Automated test systems, sensor emulation, closed-loop control, waveform synthesis, and real-time process monitoring requiring synchronized analog I/O.
Compatibility & Integration VXI plug-and-play architecture supports standard test frameworks. SCPI command set or register-level access for integration into high-speed measurement systems.
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 10 kHz to 1000 MHz | Power Range (dBm): '-127 dBm to +13 dBm | Voltage / Current Range: 100-120 VAC or 200-240 VAC, 50/60 Hz |
Frequently Asked Questions
- Is this item in working condition?
- Yes, the unit is tested and ready to be plugged in Racal 6061B mainframe.
Racal 6062A — Repair & Calibration Service
Aumictech offers NIST-traceable calibration and repair for the Racal 6062A. Calibration covers all module-specific parameters per manufacturer datasheet, output accuracy and linearity, frequency accuracy, and VXI register and trigger bus compliance. All calibrations ship with a NIST-traceable certificate. Turnaround is typically 1–3 business days after receipt.
Common Racal 6062A faults: relay contact wear, DAC/ADC drift, VXI backplane connector oxidation. Common faults include relay contact wear, DAC or ADC gain drift, and VXI backplane edge connector oxidation. Most modules are repaired at the component level with full post-repair verification in a C-size or D-size mainframe.
Racal 6062A price
This Racal 6062A is listed at $2,200. NIST-traceable calibration is included with this unit. Contact us for volume pricing or if you need multiple units.
Racal 6062A calibration cost
NIST-traceable calibration for the Racal 6062A is $450 (standard — pass/fail certificate and calibration sticker) or $650 (full measured data at every test point, reference standards documented, traceability chain included). Calibration for this instrument covers all module-specific parameters per manufacturer datasheet, output accuracy and linearity, frequency accuracy, and VXI register and trigger bus compliance. Turnaround is 1 to 3 business days after receipt. See full calibration details →
